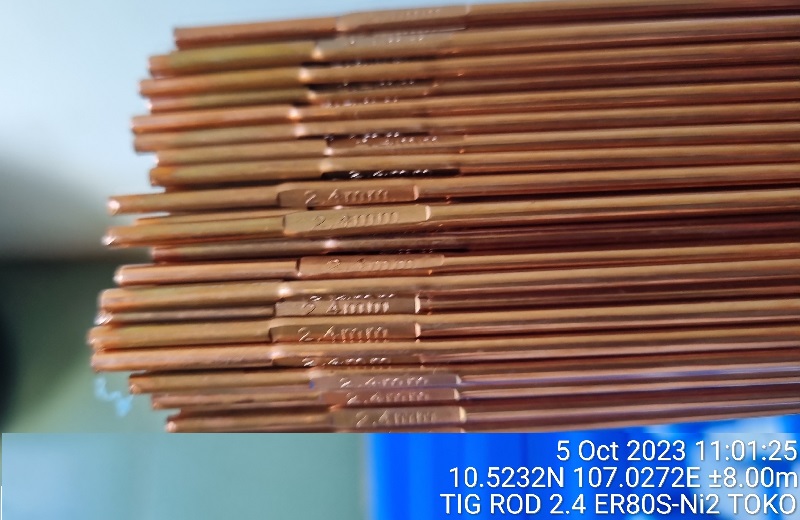

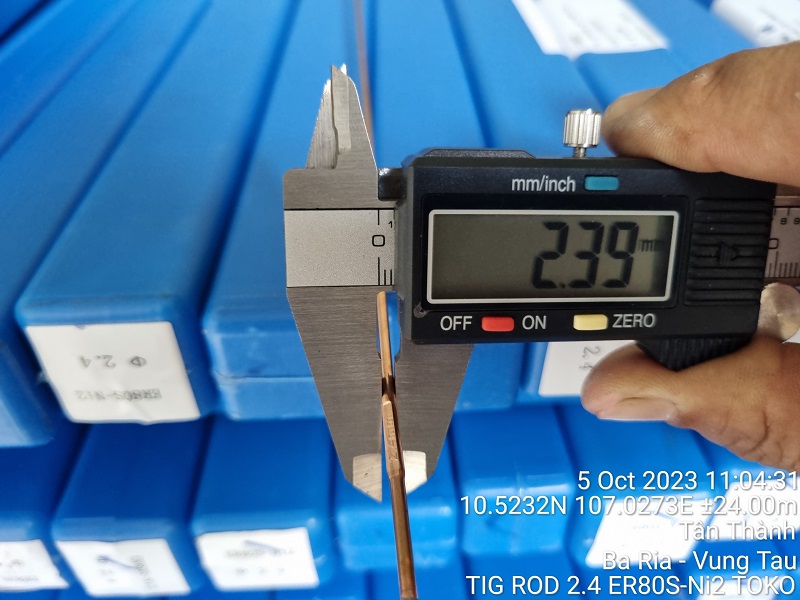

TOKO AWS A5.28 ER80S-Ni2 Welding Wire
TOKO 80S-Ni2 is for welding fine grained and low alloy nickel steels producing highimpact values even at low temperature such as -80° F. 80S-Ni2 wire normally used in applicationswhich will produce a chemical composition of 2-2.5 % nickel yielding strengths ranging from 80-100 ksi. Steels commonly welded with this grade would include weathering steels (where color match is not required), ship building, off shore platform rigging and many other similar needs.
Key Advantages
- AWS A5.28 Certified: Conforms to American Welding Society specifications for carbon and low-alloy steel gas metal arc welding.
- Nickel-Enhanced: Contains ~2% nickel for enhanced low-temperature toughness.
- High Strength: Minimum tensile strength of 80ksi (80,000 psi).
- Copper Coated: Enhances electrical conductivity and reduces contact tip wear.
- Low-Temperature Performance: Excellent toughness at temperatures as low as -50°C/-60°F.
Performance Benefits
- High Toughness at Low Temperatures: Nickel content ensures ductility and resistance to brittle fracture in subzero environments.
- Smooth Metal Transfer: Stable arc with minimal spatter in spray or globular transfer modes.
- All-Position Welding: Suitable for various welding positions with proper technique.
- Minimal Post-Weld Cleanup: Low spatter results in cleaner welds.
Common Applications
- Cryogenic storage tanks and LNG infrastructure
- Arctic pipelines and offshore platforms
- Shipbuilding and marine applications
- Heavy machinery operating in cold climates
- High-strength, low-temperature steel welding
Technical Specifications
AWS A5.28 Classification
| Component | Meaning |
|---|---|
| ER | Electrode/Rod (usable as both electrode and filler) |
| 80 | Minimum tensile strength of 80,000 psi (80 ksi or ~552 MPa) |
| S | Solid wire (requires external shielding gas) |
| Ni2 | Contains ~2% nickel for enhanced low-temperature toughness |
Chemical Composition
| Element | Percentage |
|---|---|
| Nickel (Ni) | ~2% |
| Manganese (Mn) | Optimized for strength and ductility |
| Other Elements | Trace elements to improve performance |
| Copper Coating | Enhances conductivity and reduces wear |
Mechanical Properties
| Property | Value |
|---|---|
| Tensile Strength | ≥80 ksi (552 MPa) |
| Impact Toughness | Excellent Charpy V-notch values at low temperatures |
| Low-Temperature Performance | Effective down to -50°C/-60°F |
Welding Process & Parameters
| Parameter | Details |
|---|---|
| Process | Gas Metal Arc Welding (GMAW/MIG) |
| Shielding Gas | Argon-CO₂ mixtures (e.g., 75% Ar + 25% CO₂) |
| Voltage | 24–30V (adjust based on material thickness) |
| Wire Feed Speed | Align with AWS guidelines for consistent deposition |
Compliance & Certifications
- Meets ASME Section IX and API 1104 standards
- Compatible with ISO 14341-A G 69 6 M21Ni2 (international equivalent)
- Suitable for critical infrastructure applications
Material Compatibility
- ASTM A333 (low-temp piping)
- ASTM A537 (pressure vessels)
- HSLA (high-strength low-alloy) steels
- Other high-strength, low-temperature steels
Why Choose TOKO ER80S-Ni2?
- Proven Reliability: Trusted in cryogenic, offshore, and heavy industrial applications.
- Exceptional Toughness: Nickel-enhanced formulation ensures performance in extreme conditions.
- Global Compliance: Meets international standards for high-strength welding applications.
- User-Friendly: Copper coating provides stable arc performance with minimal spatter.
